Mono block directional tswj li qub muaj ntau yam zoo xws li kev ua haujlwm siab, kev ua haujlwm siab, ntim me me, huab hwm coj ntws, thiab cov ntaub ntawv pov thawj. Tsis tas li ntawd, lub compact directional tswj li qub tau tsau thiab loj rub pas nrig los tswj cov kev taw qhia, muab ntau yam ports thiab circuit li qub. Peb cov mono block directional tswj valve muaj ntau txoj hauv kev ua haujlwm nrog rau kev tswj tuav, hydraulic thiab hluav taws xob-hydraulic tswj thiab tuaj yeem xaiv cov qauv no raws li cov neeg siv khoom xav tau.
Daim ntawv thov:
Qhov ntau txoj kev valve yog dav siv hauv engineering machinery, mining machinery, sanitation machinery, engineering tsheb.
Specification:
Technical Parameter
● Siab siab tshaj plaws: 35MPa
● Kev teeb tsa siab: 5MPa ~ 35MPa
● Qhov siab tshaj plaws: 160L / min
● Roj chaw nres nkoj tso zis tus nqi: 6L / min ~ 160L / min
●Mechanical control thrust: 11-19KG
●Hydraulic tswj siab: 6-22bar

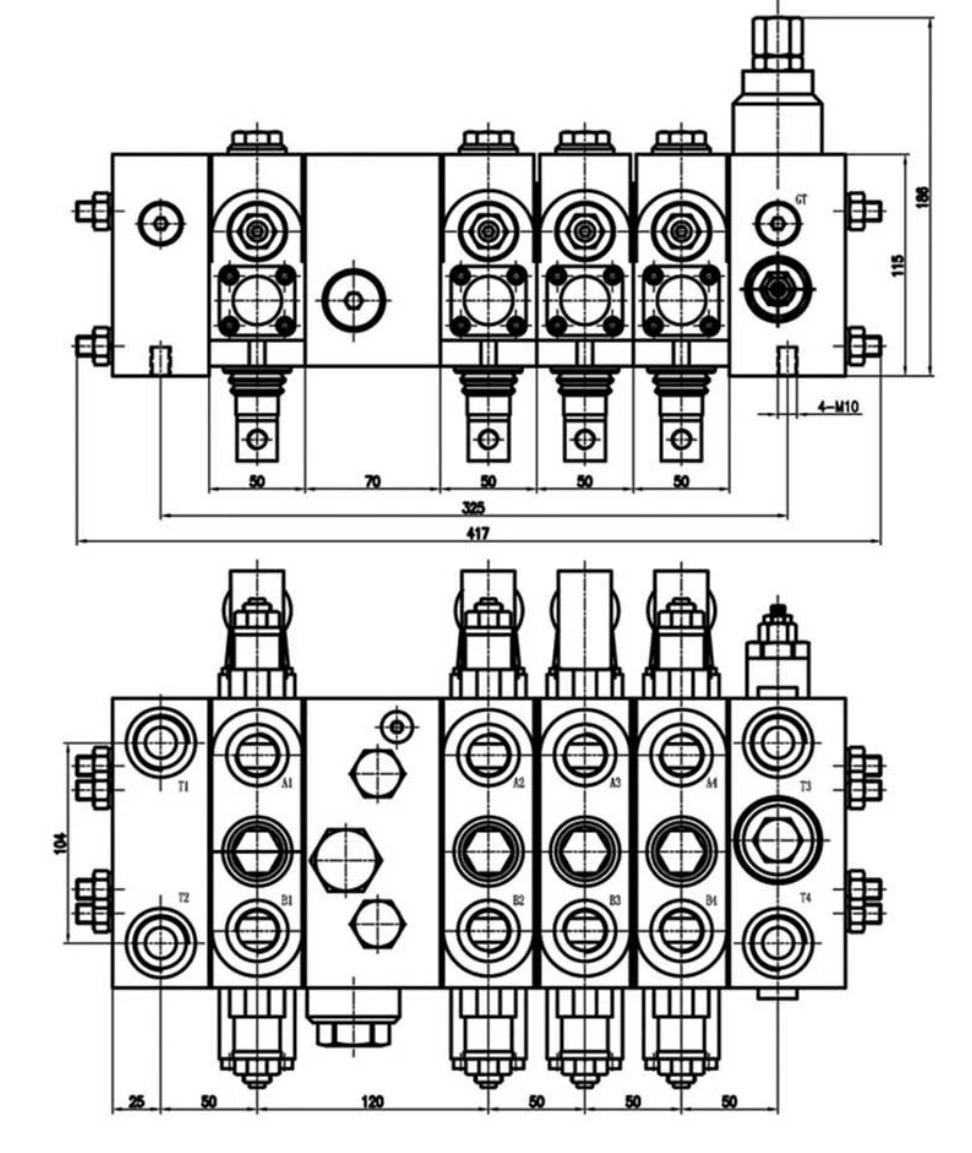

Sab nraud qhov ntev thiab installation qhov ntev
Valve lub cev roj chaw nres nkoj txuas loj
Hydraulic schematic daim duab
